사이리스터 / Thyristor / SCR

Phase Control Thyristors / High Frequency Inverter Thyristors
Fast Turn-off Thyristors / Bi-directional Control Thyristors

  • Thyristor Types
위상 제어 사이리스터 (Phase Control Thyristors) 고주파 인버터 사이리스터 (High Frequency Inverter Thyristors) 고속 턴오프 사이리스터 (Fast Turn-off Thyristors) 양방향 제어 사이리스터 (Bi-directional Control Thyristors)


저희 영광산전은 오랜 기간 전력제어반도체(Semiconductor), Thyristor/SCR, Diode, Module, IGBT, SSR등 산업 현장에 필요한 전력전자부품을 전문적으로 취급해 왔습니다. 또한 태양광 발전 설비에 필요한 SCR과 diode 등의 부품도 공급하고 있습니다.

각종 부품의 구매 외에도 상담을 통해 OEM 생산이 가능합니다. 자세한 사항은 언제든 문의해 주십시오.

Power Semiconductor Companies

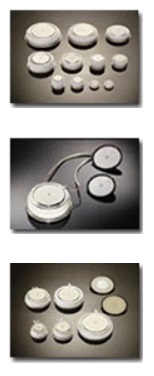

Thyristor 이미지
  • Code Designation Systems

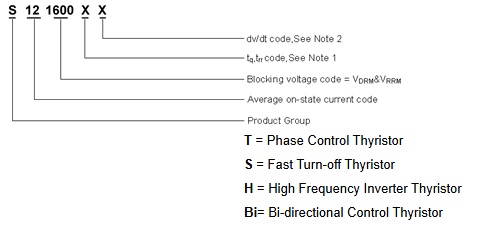

Thyristor Code
NOTE1
Code R S T U V X Z N
tq(µs) ≤ 10 11-15 16-20 21-25 26-30 31-45 46-60 61-80
trr(µs) ≤ 1 ≤ 2 ≤ 3 ≤ 5 ≤ 8 ≤ 12 ≤ 20 --
NOTE2
Code A B V D E F G H
dv/dt
(V/µs)		 50 100 200 300 500 800 1000 1500
위상 제어 사이리스터 (Phase Control Thyristors)
디스크
사이리스터
/Data		 VDRM
VRRM		 IT(AV) ITSM I2t dv/dt di/dt IDRM
IRRM		 IGT VGT VTM
/ITM		 VTO rT Rth
(j-hs)		 Tjm 장착력 도면
THS
=80°C		 10ms 125°C 25°C 125°C
.pdf V A KA KA2s V/µs A/µs mA mA V V/A V m.ohm °C/W °C KN

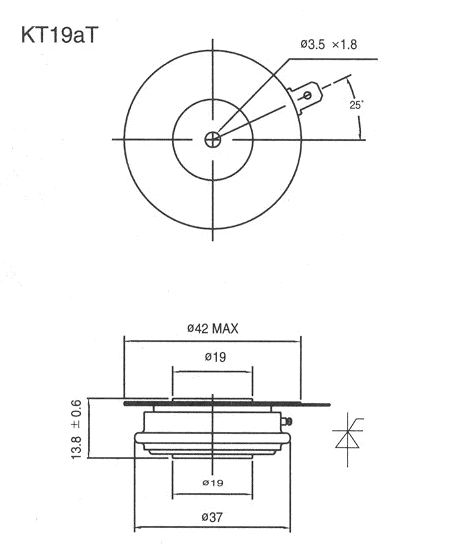

T02-XX00 800-
1800		 282 4.65 108 300 300 16 30-
200		 0.8-
2.05		 1.85
/840		 0.85 1.20 0.095 125 3.3-
5.5		 KT19aT

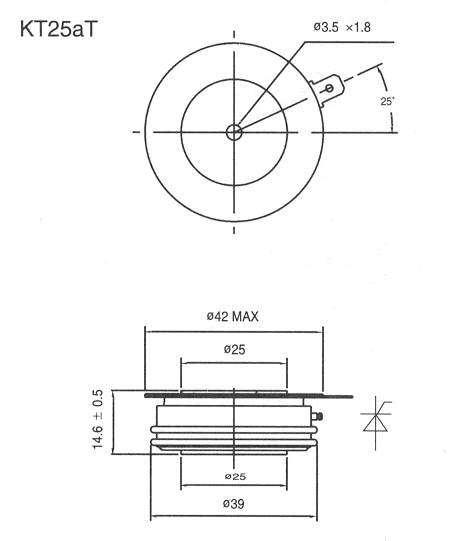

T03-XX00 800-
1800		 422 8 320 300 300 30 35-250 0.8-
2.5		 2.54
/1635		 0.87 1.02 0.055 125 5.3-
10		 KT25aT

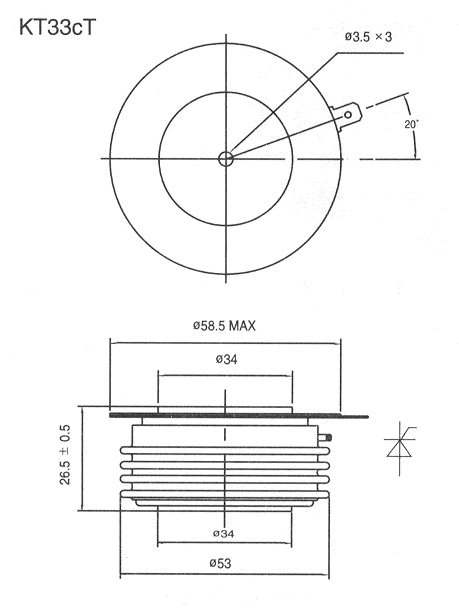

T04-XX00 800-
1800		 646 9.2 423 300 300 40 35-
250		 0.8-
2.5		 2.07
/1700		 0.91 0.68 0.035 125 10-
20		 KT33cT
T05-XX00 800-
1800		 847 12.7 806 300 300 40 35-
300		 0.8-
2.5		 1.39
/1700		 0.91 0.32 0.035 125 10-
20		 KT33cT

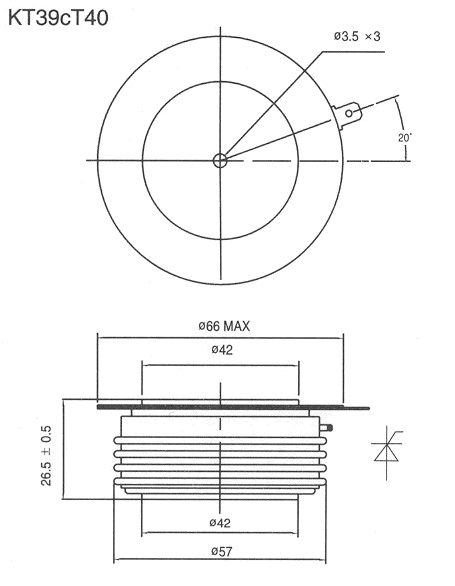

T08-XX00 800-
1800		 904 15.5 1200 300 300 50 40-
300		 0.8-
3.0		 1.40
/1700		 0.91 0.29 0.032 125 15-
20		 KT39cT40

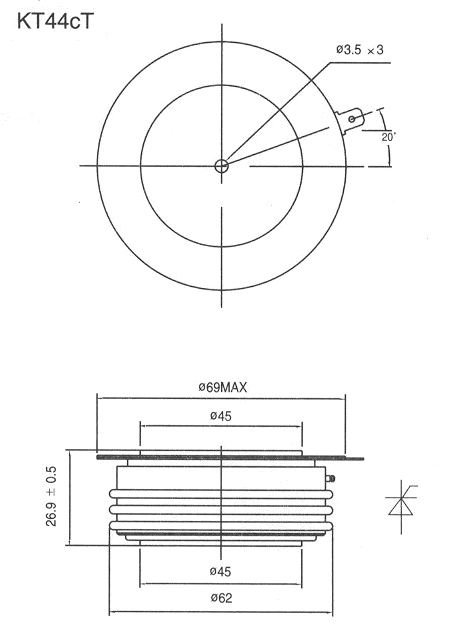

T10-XX00 800-
1800		 938 20 2000 300 300 60 40-
300		 0.8-
3.0		 1.80
/3000		 0.93 0.29 0.030 125 18-
25		 KT44cT

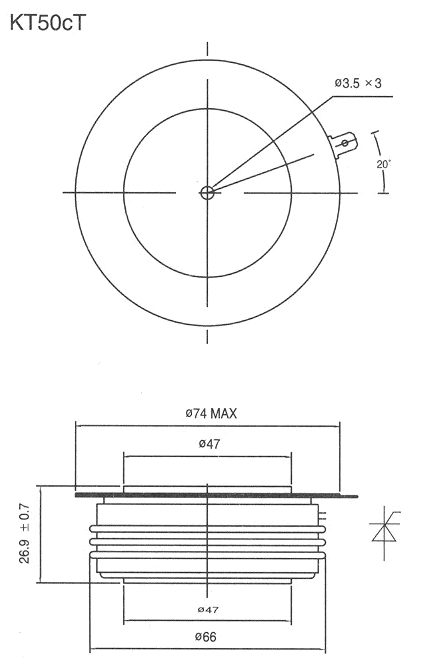

T10-XX00 1900-
2600		 942 17.6 1548 500 300 80 40-
300		 0.8-
3.0		 1.99
/2300		 1.11 0.38 0.024 125 19-
26		 KT50cT

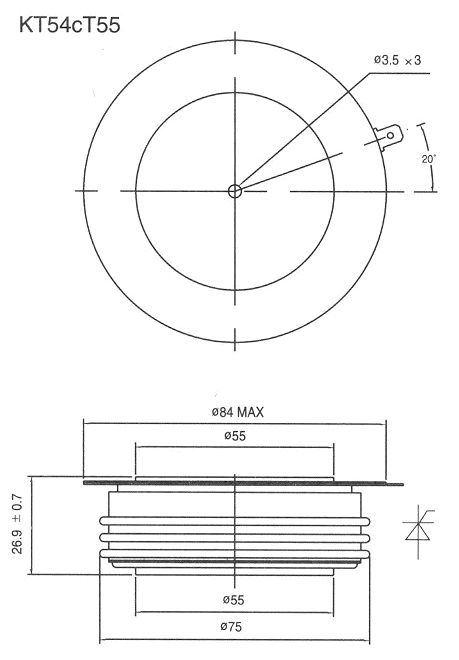

T10-XX00 2700-
3600		 1013 21.5 2311 500 400 80 40-
300		 0.8-
3.0		 1.77
/2550		 0.99 0.31 0.022 125 21-
30		 KT54cT55
T12-XX00 800-
1800		 1186 27.2 3699 300 300 80 40-
300		 0.8-
3.0		 1.50
/2550		 0.91 0.23 0.024 125 19-
26		 KT50cT
T12-XX00 1900-
2600		 1171 23.28 2710 500 400 100 40-
300		 0.8-
3.0		 1.66
/2550		 0.97 0.27 0.022 125 21-
30		 KT54cT55

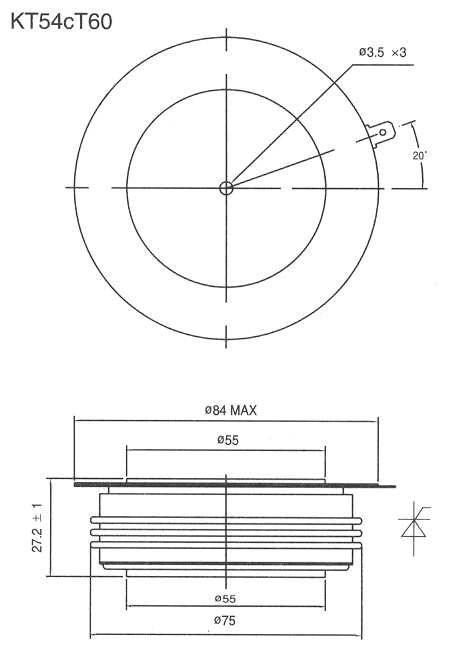

T12-XX00 2700-
3600		 1115 23 2645 500 400 120 40-
300		 0.8-
3.0		 2.17
/3220		 1.14 0.32 0.020 125 21-
30		 KT54cT60
디스크
사이리스터
/Data		 VDRM
VRRM		 IT(AV) ITSM I2t dv/dt di/dt IDRM
IRRM		 IGT VGT VTM
/ITM		 VTO rT Rth
(j-hs)		 Tjm 장착력 도면
THS
=80°C		 10ms 125°C 25°C 125°C
.pdf V A KA KA2s V/µs A/µs mA mA V V/A V m.ohm °C/W °C KN
T16-XX00 800-
1800		 1177 23.28 2710 300 400 100 40-
300		 0.8-
3.0		 1.66
/2550		 1.10 0.22 0.022 125 21-
30		 KT54cT55
T16-XX00 1900-
2600		 1159 23.28 2710 500 400 120 40-
300		 0.8-
3.0		 1.98
/3000		 1.20 0.26 0.020 125 21-
30		 KT54cT60

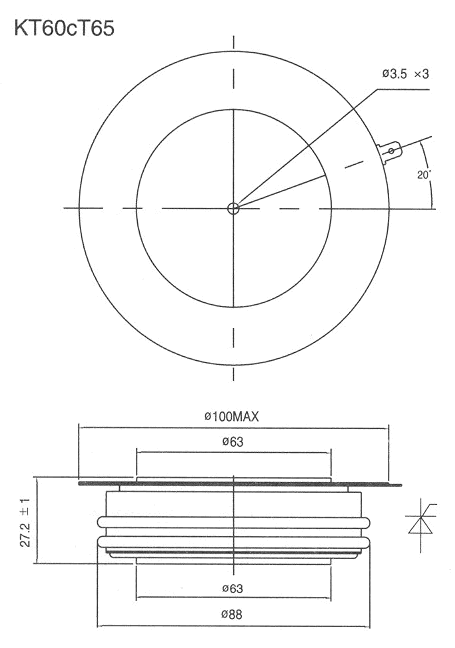

T16-XX00 2700-
3600		 1378 24.5 3001 500 400 120 40-
300		 0.8-
3.0		 1.88
/3220		 1.04 0.26 0.017 125 27-
34		 KT60cT65
T18-XX00 800-
1800		 1503 33.8 5712 300 400 120 40-
300		 0.8-
3.0		 1.54
/4000		 0.98 0.14 0.020 125 21-
30		 KT54cT60
T18-XX00 1900-
2600		 1456 33.8 5712 500 400 120 40-
300		 0.8-
3.0		 1.91
/4000		 1.03 0.22 0.017 125 27-
34		 KT60cT65
T20-XX00 800-
1800		 1822 37 6845 300 400 120 40-
300		 0.8-
3.0		 1.38
/4000		 0.87 0.13 0.017 125 27-
34		 KT60cT65

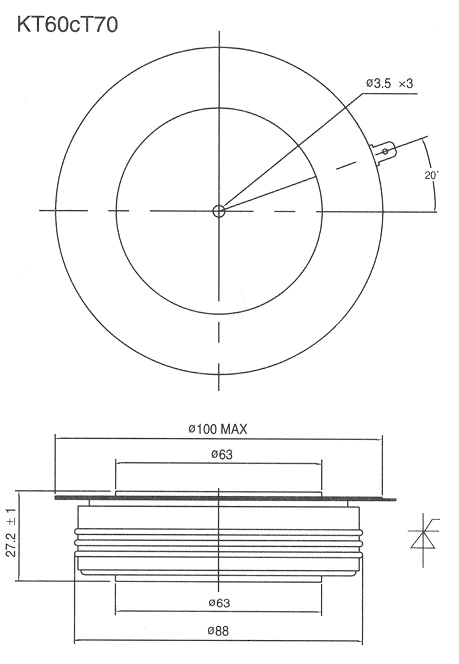

T20-XX00 1900-
2600		 1469 28 3920 500 400 160 40-
300		 0.8-
3.0		 1.94
/4000		 1.07 0.22 0.016 125 30-
40		 KT60cT70

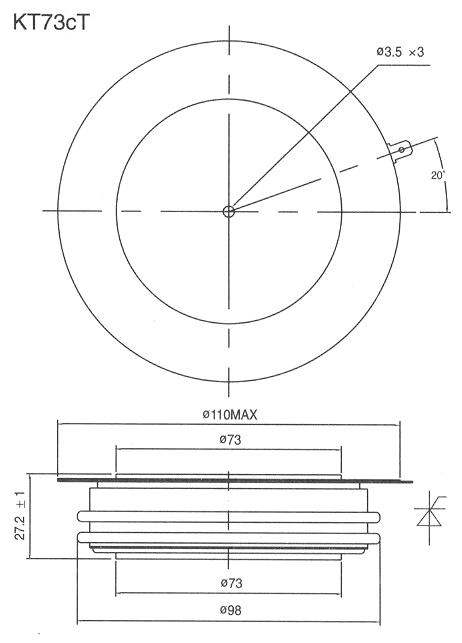

T20-XX00 2700-
3600		 1968 32 5120 500 400 200 40-
300		 0.8-
3.0		 1.71
/3000		 1.11 0.20 0.011 125 35-
47		 KT73cT
T25-XX00 800-
1800		 2047 37 6845 300 400 160 40-
300		 0.8-
3.0		 1.37
/5000		 0.85 0.104 0.016 125 30-
40		 KT60cT70
T25-XX00 1900-
2600		 2240 32 5120 500 400 200 40-
300		 0.8-
3.0		 1.75
/5000		 1.0 0.15 0.011 125 35-
47		 KT73cT
디스크
사이리스터
/Data		 VDRM
VRRM		 IT(AV) ITSM I2t dv/dt di/dt IDRM
IRRM		 IGT VGT VTM
/ITM		 VTO rT Rth
(j-hs)		 Tjm 장착력 도면
THS
=80°C		 10ms 125°C 25°C 125°C
.pdf V A KA KA2s V/µs A/µs mA mA V V/A V m.ohm °C/W °C KN
T30-XX00 400-1000 2189 45.6 10396 300 400 160 40-
300		 0.8-
3.0		 1.25
/5000		 0.80 0.09 0.016 125 30-
40		 KT60cT70
T30-XX00 800-1800 2802 49.9 12428 500 400 200 40-
300		 0.8-
3.0		 1.29
/5000		 0.84 0.09 0.011 125 35-
47		 KT73cT
T35-XX00 400-1000 2929 49.9 12428 500 400 200 40-
300		 0.8-
3.0		 1.22
/5000		 0.82 0.08 0.011 125 35-
47		 KT73cT
스터드
사이리스터
/Data		 VDRM
VRRM		 IT(AV) ITSM I2t dv/dt di/dt IDRM
IRRM		 IGT VGT VTM
/ITM		 VTO rT Rth
(j-hs)		 Tjm 장착력 도면
THS
=80°C		 10ms 125°C 25°C 125°C
.pdf V A KA KA2s V/µs A/µs mA mA V V/A V m.ohm °C/W °C KN

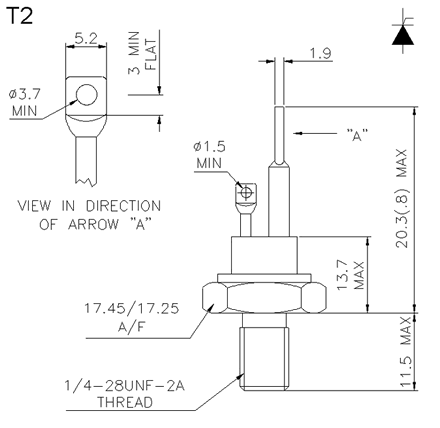

T01-XX00 100-2000 100 1.9 18 500 100 30 10-
200		 0.8-
2.7		 2.0
/300		 1.36 1.28 0.22 125 13-
19		 T2

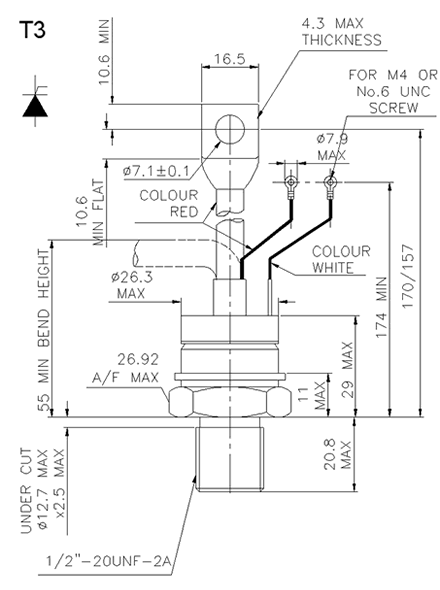

T02-XX00 100-2000 200 3.8 72 500 100 40 10-
250		 0.8-
2.8		 2.0
/600		 0.75 1.22 0.15 125 25-
30		 T3

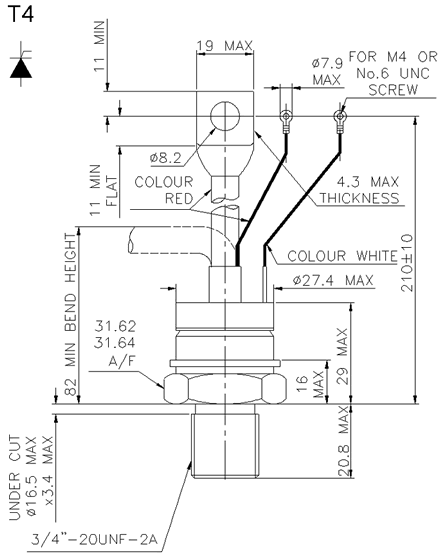

T03-XX00 100-2000 300 3.8 72 500 100 40 10-
250		 0.8-
2.8		 2.0
/900		 0.61 0.95 0.11 125 25-
30		 T4
고주파 인버터 사이리스터 (High Frequency Inverter Thyristors)
Type
/Data		 VDRM
VRRM		 IT(AV) tq ITSM I2t dv/dt di/dt IDRM
IRRM		 IGT VGT VTM
/ITM		 VTO rT Rth
(j-hs)		 Tjm 장착력 도면
THS
=55°C		 115°C 10ms 115°C 25°C 115°C
.pdf V A µs KA KA2s V/µs A/µs mA mA V V/A V m.ohm °C/W °C KN
H02-XX00 800-1200 419 6-10 3.0 45 500 600 30 30-
200		 0.8-
2.5		 2.12
/600		 1.45 1.12 0.055 115 5.3-
10		 KT25aT
H02-XX00 1200-1600 377 10-16 2.4 29 500 600 30 30-
200		 0.8-
2.5		 2.46
/600		 1.67 1.32 0.055 115 5.3-
10		 KT25aT
H03-XX00 800-1200 608 10-16 3.6 65 500 600 40 30-
250		 0.8-
3.0		 2.29
/900		 1.50 0.88 0.035 115 10-
20		 KT33cT
H04-XX00 800-1200 665 6-10 4.8 115 500 600 40 30-
250		 0.8-
3.0		 2.28
/1200		 1.48 0.67 0.035 115 10-
20		 KT33cT
H05-XX00 1200-1600 731 10-16 6.0 180 500 600 50 30-
250		 0.8-
3.0		 2.42
/1500		 1.70 0.48 0.032 115 15-
20		 KT39cT40
H06-XX00 800-1200 783 6-10 7.2 259 500 600 50 30-
250		 0.8-
3.0		 2.33
/1800		 1.43 0.50 0.032 115 15-
20		 KT39cT40
H06-XX00 1000-1400 801 12-18 8.0 320 500 600 60 30-
250		 0.8-
3.0		 2.42
/1800		 1.61 0.45 0.030 115 18-
25		 KT44cT
H08-XX00 800-1200 851 8-15 9.6 461 500 600 60 30-
250		 0.8-
3.0		 2.49
/2400		 1.41 0.45 0.030 115 18-
25		 KT44cT
H08-XX00 1000-1400 990 12-18 9.6 461 500 600 80 30-
250		 0.8-
3.0		 2.51
/2400		 1.65 0.36 0.024 115 19-
26		 KT50cT
H10-XX00 800-1200 1131 8-15 12 720 500 600 80 30-
300		 0.8-
3.0		 2.28
/3000		 1.32 0.32 0.024 115 19-
26		 KT50cT
H10-XX00 1000-1400 1163 12-18 12 720 500 600 100 30-
300		 0.8-
3.0		 2.38
/3000		 1.63 0.25 0.022 115 21-
30		 KT54cT55
H12-XX00 800-1200 1343 8-15 14 980 500 600 100 30-
300		 0.8-
3.0		 1.96
/3000		 1.27 0.23 0.022 115 21-
30		 KT54cT55
고속 턴오프 사이리스터 (Fast Turn-off Thyristors)
Type
/Data		 VDRM
VRRM		 IT(AV) tq ITSM I2t dv/dt di/dt IDRM
IRRM		 IGT VGT VTM
/ITM		 VTO rT Rth
(j-hs)		 Tjm 장착력 도면
THS
=55°C		 115°C 10ms 115°C 25°C 125°C
.pdf V A µs KA KA2s V/µs A/µs mA mA V V/A V m.ohm °C/W °C KN
S03-XX00 800-1600 383 15-35 3.8 72 500 600 30 40-250 0.9-2.5 2.79
/900		 1.60 1.32 0.055 115 5.3-10 KT25aT
S04-XX00 800-1600 524 15-35 5 125 500 600 40 40-250 0.9-2.5 2.12
/1200		 1.32 0.66 0.035 115 10-20 KT33cT
S05-XX00 800-1800 738 15-35 6.3 198 500 600 40 40-250 0.9-2.5 2.16
/1500		 1.36 0.53 0.035 115 10-20 KT33cT
S06-XX00 800-1800 786 15-35 7.5 281 500 600 50 40-300 0.9-3.0 2.32
/1800		 1.42 0.50 0.032 115 15-20 KT39cT40
S08-XX00 800-1800 828 15-35 10 500 500 600 60 40-300 0.9-3.0 2.58
/2400		 1.50 0.45 0.030 115 18-25 KT44cT
S10-XX00 800-1800 1040 15-35 12 720 500 600 80 40-300 0.9-3.0 2.55
/3000		 1.56 0.33 0.024 115 19-26 KT50cT
S12-XX00 800-1800 1135 15-35 14 980 500 600 100 40-300 0.9-3.0 2.47
/3000		 1.51 0.32 0.022 115 21-30 KT54cT55
S15-XX00 800-1800 1273 15-35 16 1280 500 600 120 40-300 0.9-3.5 2.32
/3000		 1.48 0.28 0.020 115 21-30 KT54cT60
S18-XX00 800-1800 1545 15-35 19 1805 500 600 120 40-400 0.9-3.5 2.33
/4000		 1.41 0.23 0.017 115 27-34 KT60cT65
Type
/Data		 VDRM
VRRM		 IT(AV) tq ITSM I2t dv/dt di/dt IDRM
IRRM		 IGT VGT VTM
/ITM		 VTO rT Rth
(j-hs)		 Tjm 장착력 도면
THS
=55°C		 115°C 10ms 115°C 25°C 125°C
.pdf V A µs KA KA2s V/µs A/µs mA mA V V/A V m.ohm °C/W °C KN
S20-XX00 800-1800 1634 15-35 21 2205 500 600 160 40-450 0.9-4.5 2.29
/4000		 1.45 0.21 0.016 115 30-40 KT60cT70
S20-XX00 1900-2500 1580 35-70 21 2205 500 600 160 40-450 0.9-4.5 2.40
/4000		 1.48 0.23 0.016 115 30-40 KT60cT70
S20-XX00 2600-3000 2024 35-70 27 3645 500 600 200 40-450 0.9-4.5 2.46
/4000		 1.50 0.24 0.011 115 35-47 KT73cT
S25-XX00 1900-2500 2216 35-70 28 3920 500 600 200 40-450 0.9-4.5 2.38
/5000		 1.48 0.18 0.011 115 35-47 KT73cT
S30-XX00 800-1800 2517 15-40 29 4205 500 600 200 40-450 0.9-4.5 2.00
/5000		 1.30 0.14 0.011 115 35-47 KT73cT

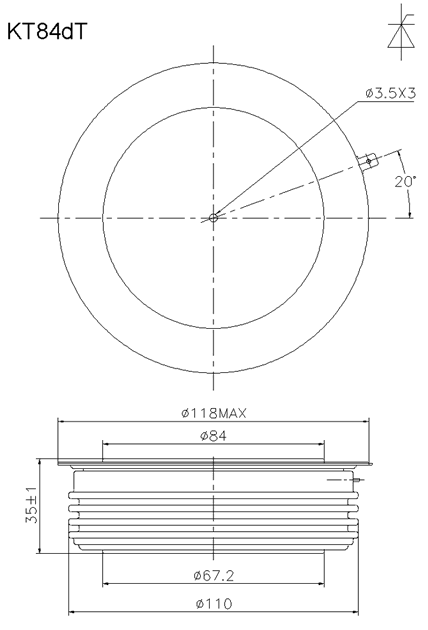

S30-XX00 2000-3000 2623 40-80 38 6125 500 600 250 40-450 0.9-4.5 2.28
/5000		 1.38 0.18 0.009 115 70-85 KT84dT
양방향 제어 사이리스터 (Bi-directional Control Thyristors)
Type
/Data		 VDRM IT(RMS) ITSM l2t dv/dt di/dt IDRM IGT VGT IH VTM
/ITM		 VTO rT Rth
(j-hs)		 Tjm 장착력 도면
THS
=80°C		 20ms 125°C 25°C 125°C
.pdf V A KA KA2s V/µs A/µs mA mA V mA V/A V m.ohm °C/W °C KN
Bi05-
XX00 		500-
1800		 471 2.5 31 50 50 30 20-
200		 0.8-
2.5		 20-
200		 1.89
/500		 0.99 1.80 0.055 125 5.3-10 KT25aT
Bi06-
XX00 		500-
1800		 794 4.2 88 50 50 40 20-
300		 0.8-
3.0		 20-
300		 1.82
/900		 0.90 1.02 0.035 125 10-20 KT33cT
Bi08-
XX00 		500-
1800		 862 6.8 231 50 50 50 20-
350		 0.8-
3.5		 20-
400		 2.02
/1200		 1.00 0.85 0.032 125 15-20 KT39cT40
